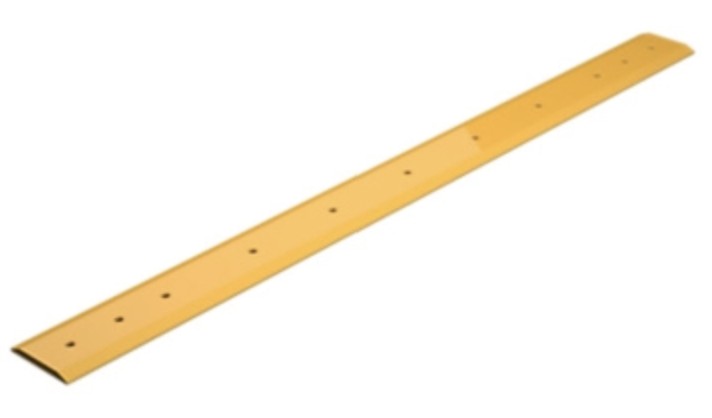

1359397 – Skid Steer Edge 16mm suits CAT 11 holes 237mm HC, 80.5″ (2046mm)
$195.00 Plus GST
Built tough for demanding applications, this Caterpillar style bolt-on center cutting edge fits a 78-inch skid steer bucket. Made to last, this double beveled, reversible cutting edge delivers long wear life and reliable performance for your earthmoving or material handling needs.
Specifications:
-
Material Thickness: 0.625″ (5/8″)
-
Width: 6.5″
-
Length: 80.579″
-
Bolt Hole Spacing: 4.65″ center-to-center
-
Edge to First Hole Distance: 2.96″ (measured from edge to center of first hole)
-
Bolt Type: Requires 11 plow bolts (5/8″ x 2″ / 625X200)
-
Nut Type: Requires 11 hex nuts (5/8″ / 625 HEX NUT)
Key Features:
-
Reversible design doubles the lifespan
-
Double bevel for smooth and aggressive cutting
-
Secure bolt-on installation for fast replacement
-
Compatible with Caterpillar 78″ skid steer buckets
10 in stock
Built tough for demanding applications, this Caterpillar style bolt-on center cutting edge fits a 78-inch skid steer bucket. Made to last, this double beveled, reversible cutting edge delivers long wear life and reliable performance for your earthmoving or material handling needs.
Specifications:
- Material Thickness: 0.625″ (5/8″)
- Width: 6.5″
- Length: 80.579″
- Bolt Hole Spacing: 4.65″ center-to-center
- Edge to First Hole Distance: 2.96″ (measured from edge to center of first hole)
- Bolt Type: Requires 11 plow bolts (5/8″ x 2″ / 625X200)
- Nut Type: Requires 11 hex nuts (5/8″ / 625 HEX NUT)
Key Features:
Compatible with Caterpillar 78″ skid steer buckets
Reversible design doubles the lifespan
Double bevel for smooth and aggressive cutting
Secure bolt-on installation for fast replacement
