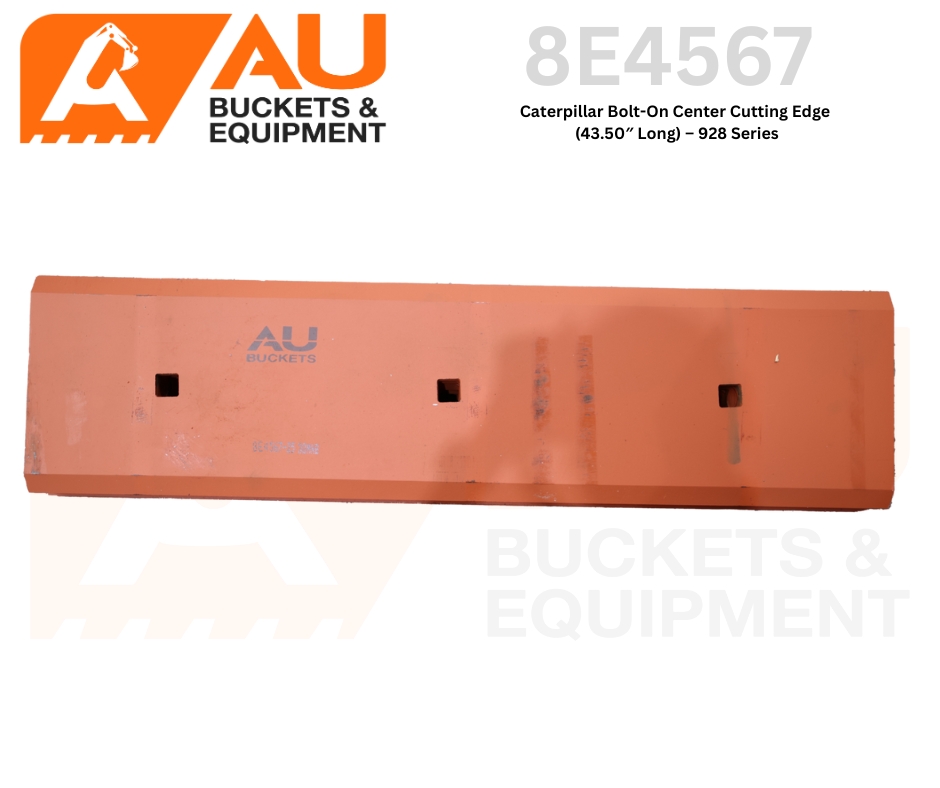

8E4567 – Caterpillar Bolt-On Center Cutting Edge (43.50″ Long) – 928 Series
$300.00 Plus GST
Product Details:
This Caterpillar-style bolt-on center cutting edge is designed for Caterpillar 928 Front End Loaders. It is a double-beveled, reversible bucket cutting edge, ensuring extended wear life and enhanced durability.
Specifications:
- Product Type: Cutting Edge
- Make: Caterpillar
- Sub-Series: 928 Series
- Thickness: 25.40 mm (1″)
- Width: 279.40 mm (11″)
- Length: 1104.90 mm (43.50″)
- Blade Type: Double Bevel, Reversible
- Bolt Specifications:
- Bolt Quantity: 3
- Bolt Size: 25.40 mm x 69.85 mm (1″ x 2 ¾”)
- Bolt Type: Plow Bolt (100X275)
- Nut Type: 1″ (100 HEX NUT)
- Bolt Hole Spacing:
- Edge to 1st Hole: 177.80 mm (7″)
- Center-to-Center Between Holes: 358.90 mm (14.13″)
Built for heavy-duty use, Part #8E4567 ensures reliable performance and a longer lifespan for your Caterpillar 928 Front End Loader. Order now for fast shipping!
10 in stock
- Description (CLICK HERE)
- Specs/History/Downloads (CLICK HERE)
- G.E.T and Accessories (CLICK HERE)
- G.E.T Product Details
Product Details:
This Caterpillar-style bolt-on center cutting edge is designed for Caterpillar 928 Front End Loaders. It is a double-bevelled, reversible bucket cutting edge, ensuring extended wear life and enhanced durability.
Specifications:
- Product Type: Cutting Edge
- Make: Caterpillar
- Sub-Series: 928 Series
- Thickness: 25.40 mm (1″)
- Width: 279.40 mm (11″)
- Length: 1104.90 mm (43.50″)
- Blade Type: Double Bevel, Reversible
- Bolt Specifications:
- Bolt Quantity: 3
- Bolt Size: 25.40 mm x 69.85 mm (1″ x 2 ¾”)
- Bolt Type: Plow Bolt (100X275)
- Nut Type: 1″ (100 HEX NUT)
- Bolt Hole Spacing:
- Edge to 1st Hole: 177.80 mm (7″)
- Center-to-Center Between Holes: 358.90 mm (14.13″)
Built for heavy-duty use, Part #8E4567 ensures reliable performance and a longer lifespan for your Caterpillar 928 Front End Loader. Order now for fast shipping!
End bit to go with this is 4T8091
Available: 38
{
