CB40- Chocky Bar 40mm x 240mm Notched
$28.00 Plus GST
AU GET supplied by AU Buckets & Equipment

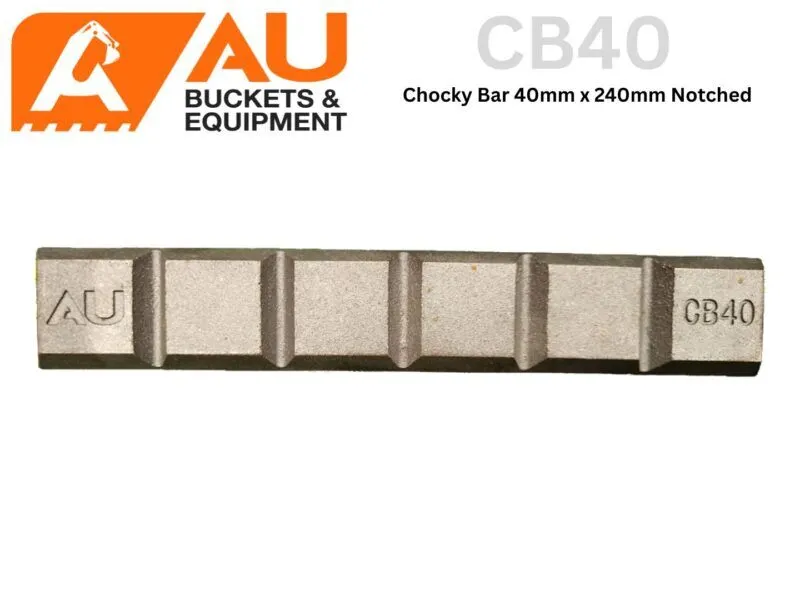

Part #CB40 is a notched chocky bar measuring 40 mm x 240 mm, designed for easy forming and welding to high-wear surfaces on buckets, blades, crushers, and chutes. The notched backing allows the bar to be bent and shaped to curved surfaces without compromising wear protection.
Product Specifications:
-
Part Number: CB40
-
Type: Notched Chocky Bar
-
Dimensions: 40 mm (W) x 240 mm (L)
-
Thickness: Typically 23–25 mm total (steel backing + chrome white iron)
-
Material: Chrome white iron bonded to mild steel backing
-
Hardness: 63 HRC (700+ BHN) on wear surface
-
Application: Weld-on wear protection for buckets, blades, hoppers, crushers, and more
Key Features:
-
Notched design for easy forming to curves and corners
-
High wear resistance for maximum service life
-
Simple to cut and weld on-site
-
Ideal for mining, earthmoving, quarrying, and demolition applications
AU GET supplied by AU Buckets & Equipment – tough protection, easy fit.
1 in stock (can be backordered)
AU GET supplied by AU Buckets & Equipment
Part #CB40 is a notched chocky bar measuring 40 mm x 240 mm, designed for easy forming and welding to high-wear surfaces on buckets, blades, crushers, and chutes. The notched backing allows the bar to be bent and shaped to curved surfaces without compromising wear protection.
Product Specifications:
- Part Number: CB40
- Type: Notched Chocky Bar
- Dimensions: 40 mm (W) x 240 mm (L)
- Thickness: Typically 23–25 mm total (steel backing + chrome white iron)
- Material: Chrome white iron bonded to mild steel backing
- Hardness: 63 HRC (700+ BHN) on wear surface
- Application: Weld-on wear protection for buckets, blades, hoppers, crushers, and more
Key Features:
- Notched design for easy forming to curves and corners
- High wear resistance for maximum service life
- Simple to cut and weld on-site
- Ideal for mining, earthmoving, quarrying, and demolition applications
AU GET supplied by AU Buckets & Equipment – tough protection, easy fit.
{
