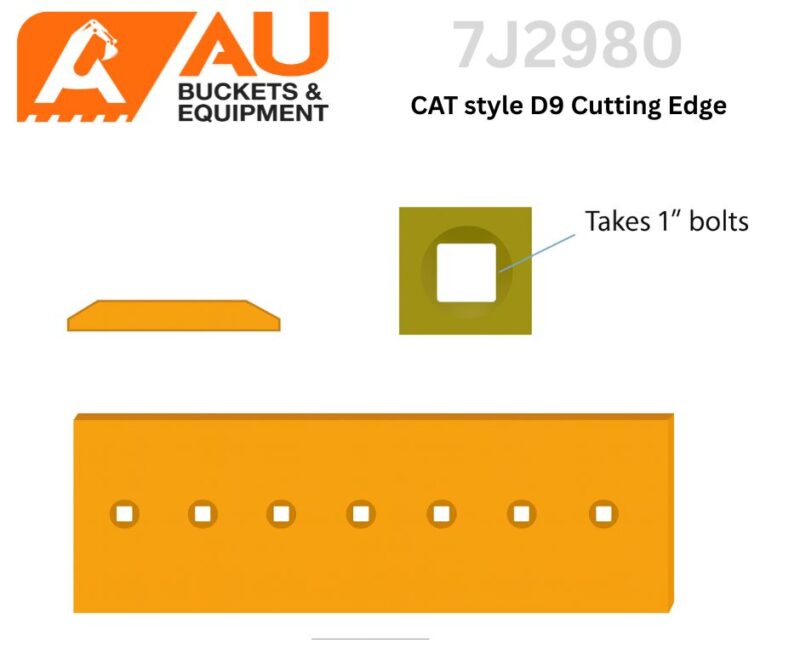

7J2980 – Caterpillar Style D9 Bolt-On Cutting Edge
$750.00 Plus GST
The 7J2980 is a Caterpillar-style bolt-on cutting edge used for loaders and dozers. Designed from heat-treated alloy steel, this edge offers excellent abrasion resistance and protects the base edge of the bucket from wear.
Ideal for quarrying, construction, and heavy earthmoving, it provides a cost-effective replacement for OEM bucket edges and is easy to install with standard hardware.
Specifications:
Part Number: 7J2980
Type: Bolt-On Cutting Edge
Length: 41.00″ (1,041 mm)
Width: 8.00″ (203 mm)
Thickness: 0.75″ (19 mm)
Weight: ~38–42 kg
Material: Heat-treated, high-strength alloy steel
Bolt Pattern Details:
Detail Measurement Notes
Bolt Hole Qty 5 Evenly spaced
Bolt Hole Diameter 5/8″ (~16 mm) Suits standard plow bolts
End to 1st Hole 2.75″ (70 mm) From blade edge to hole center
1st to 2nd Hole 8.00″ (203 mm) Center to center
Hole Spacing (even) 8.00″ (203 mm) Across blade
End to End Hole Distance 32.00″ (813 mm) Approximate bolt pattern length
Key Features:
Protects bucket base edge from premature wear
Heavy-duty steel for long service life in abrasive environments
Pre-drilled for quick bolt-on replacement
Compatible with Caterpillar OEM and aftermarket hardware
Out of stock
- Description (CLICK HERE)
- Specs/History/Downloads (CLICK HERE)
- G.E.T and Accessories (CLICK HERE)
- G.E.T Product Details
The 7J2980 is a heavy-duty Caterpillar-style bolt-on cutting edge, designed to provide durable wear protection and improve the service life of loader and dozer buckets. This edge is made from heat-treated alloy steel for strength and abrasion resistance, and is drilled for easy bolt-on installation.
Specifications:
- Part Number: 7J2980
- Type: Bolt-on Cutting Edge
- Length: 41.00″ (1,041 mm)
- Width: ~8″ (203 mm) (varies by source)
- Thickness: ~0.75″–1.00″ (standard CAT spec)
- Bolt Hole Qty: 5–6 (depending on pattern)
- Material: Heat-treated, wear-resistant alloy steel
- Application: Loader and dozer buckets, replacement edge
Bolt Pattern Details:
| Detail | Measurement | Notes |
|---|---|---|
| Bolt Hole Qty | 5 | Evenly spaced |
| Bolt Hole Diameter | 5/8″ (~16 mm) | Suits standard plow bolts |
| End to 1st Hole | 2.75″ (70 mm) | From blade edge to hole center |
| 1st to 2nd Hole | 8.00″ (203 mm) | Center to center |
| Hole Spacing (even) | 8.00″ (203 mm) | Across blade |
| End to End Hole Distance | 32.00″ (813 mm) | Approximate bolt pattern length |
Key Features:
- Extends bucket life and reduces maintenance costs
- Pre-drilled for quick, bolt-on replacement
- Compatible with OEM and aftermarket CAT hardware
- Built to withstand abrasive ground and quarry conditions
{
