424-815-1131 – Komatsu-Style Bolt-On End Cutting Edge – WA400 Loader (Same as 424-815-A130)
$320.00 Plus GST
AU GET supplied by AU Buckets & Equipment

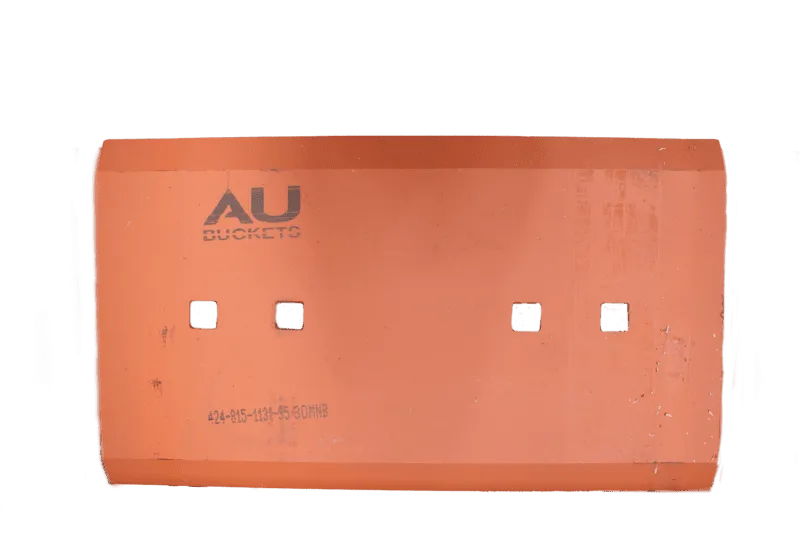

This Komatsu-style bolt-on end cutting edge is a double beveled, reversible edge designed for the WA400 Komatsu Loader. Built to provide dependable bucket protection and efficient material flow, it is suitable for either side of the bucket and ideal for high-wear environments.
Product Specifications:
-
Application: End Cutting Edge for Komatsu WA400 Loader
-
Type: Double Beveled, Reversible
-
Thickness: 1.375 in (34.93 mm)
-
Width: 13 in (330.2 mm)
-
Length: 22.625 in (574.88 mm)
-
Bolt Hole Spacing:
-
3.1563 in (80.19 mm) center-to-center of the first two holes
-
3.97 in (100.84 mm) from edge to first hole center
-
-
Mounting Requirements:
-
(4) Plow Bolts – 7/8″ x 3 1/2″ (875 x 350 mm)
-
(4) Hex Nuts – 7/8″ (875 HEX)
-
Key Features:
-
Reversible for double the wear life
-
Designed to fit right or left-hand side
-
Heavy-duty construction with quick bolt-on installation
-
Fully compatible with WA400 buckets and AU Buckets systems
AU GET supplied by AU Buckets & Equipment – built for durability in Australian conditions.
6 in stock
- G.E.T and Accessories (CLICK HERE)
- Description (CLICK HERE)
- Specs/History/Downloads (CLICK HERE)
- G.E.T Product Details
AU GET supplied by AU Buckets & Equipment
This Komatsu-style bolt-on end cutting edge is a double beveled, reversible edge built to suit the WA400 Komatsu Loader. Designed for reliable side-edge protection and high-performance cutting, it fits either side of the bucket and is made for the toughest working conditions.
Product Specifications:
- Application: End Cutting Edge for Komatsu WA400 Loader
- Type: Double Beveled, Reversible
- Thickness: 1.375 in (34.93 mm)
- Width: 13 in (330.2 mm)
- Length: 22.625 in (574.88 mm)
- Bolt Hole Spacing:
- 3.1563 in (80.19 mm) center-to-center of first two holes
- 3.97 in (100.84 mm) from edge to first hole center
- Mounting Requirements:
- (4) Plow Bolts – 7/8″ x 3 1/2″ (875 x 350 mm)
- (4) Hex Nuts – 7/8″ (875 HEX)
Key Features:
- Reversible for extended wear life
- Compatible with both RH and LH bucket sides
- Tested to yield strength between 450–500
- Heavy-duty design with quick bolt-on installation
- Suitable for WA400 buckets and AU Buckets attachments
AU GET supplied by AU Buckets & Equipment – built to perform under pressure in Australian conditions.
