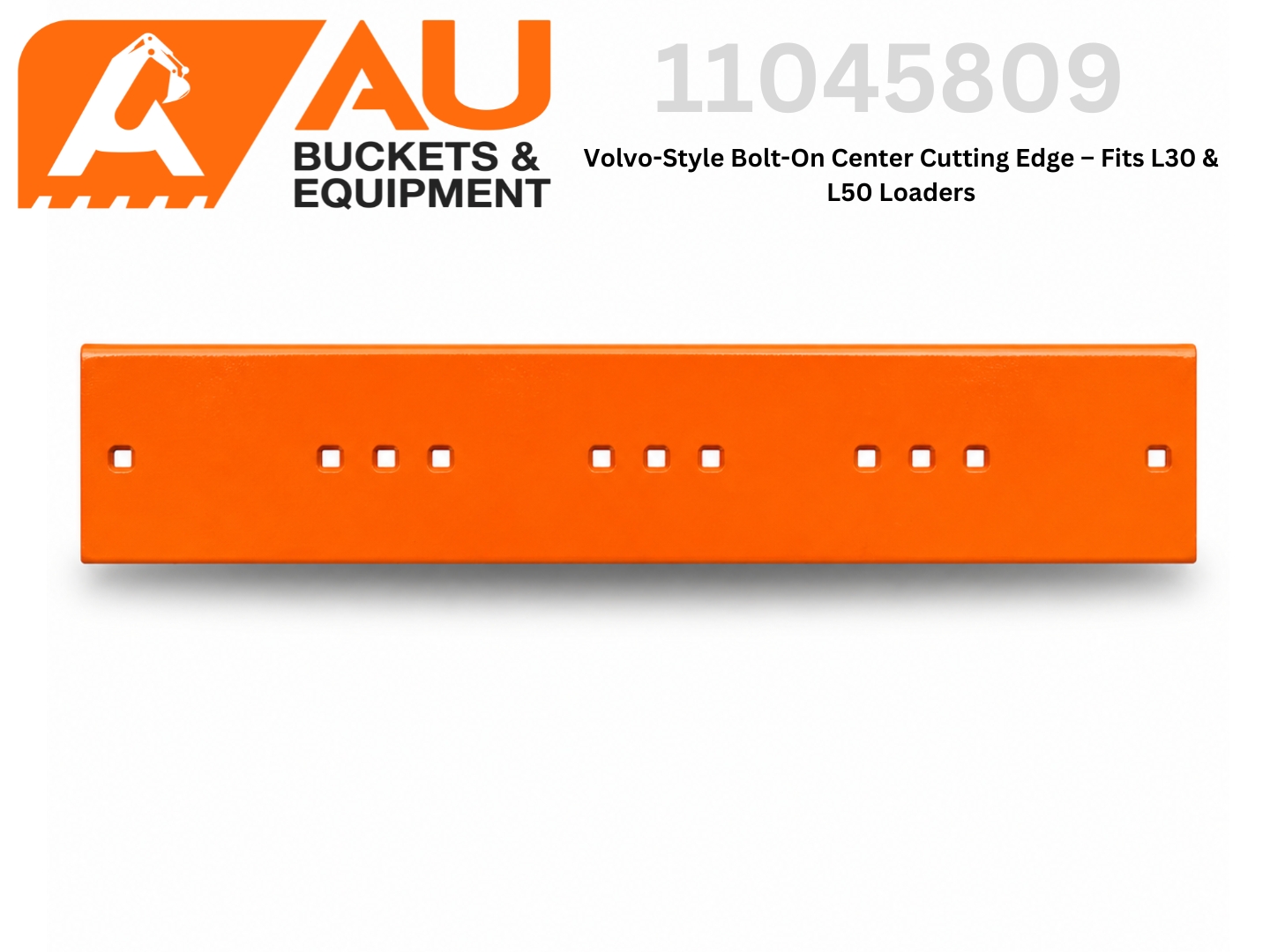

11045809 – Volvo-Style Bolt-On Center Cutting Edge – 1″ x 13.78″ x 63.94″ (Double Bevel, Reversible)

AU GET supplied by AU Buckets & Equipment

This Volvo-style bolt-on center cutting edge is a double bevel, reversible edge designed to fit a range of Volvo loaders. With a heavy-duty profile of 1″ thick, 13.78″ wide, and 63.94″ long, it offers superior wear resistance and cutting performance. Precision-drilled with 11 mounting holes, it ensures a tight, secure fit and is ideal for demanding earthmoving and loading applications.

Product Specifications:

• Type: Double Bevel, Reversible

• Dimensions: 1″ (25.4 mm) thick x 13.78″ (350 mm) wide x 63.94″ (1624 mm) long

• Hole Count: 11

• Bolt Hole Spacing:

  • 4.25″ (107.95 mm) center-to-center

  • 4.75″ (120.65 mm) from edge to center of first hole

• Mounting Requirements:

  • (11) Plow Bolts – 3/4″ x 3″ (750 x 300 mm)

  • (11) Hex Nuts – 3/4″ (750 HEX)

• Material: Wear-resistant alloy steel

• Hardness: Tested to yield strength between 450–500

Key Features:

• Double bevel for smooth cutting and extended wear life

• Reversible for cost-effective performance

• Precision-drilled for quick and secure installation

• Compatible with Volvo buckets and AU Buckets systems

• Ideal for high-impact construction, quarry, and earthmoving environments

AU GET supplied by AU Buckets & Equipment – tough gear made for Australian worksites.
