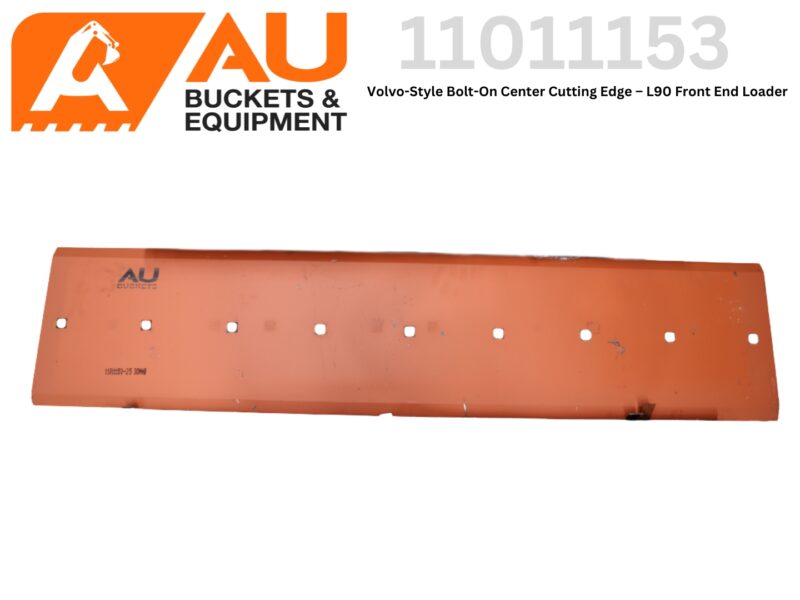

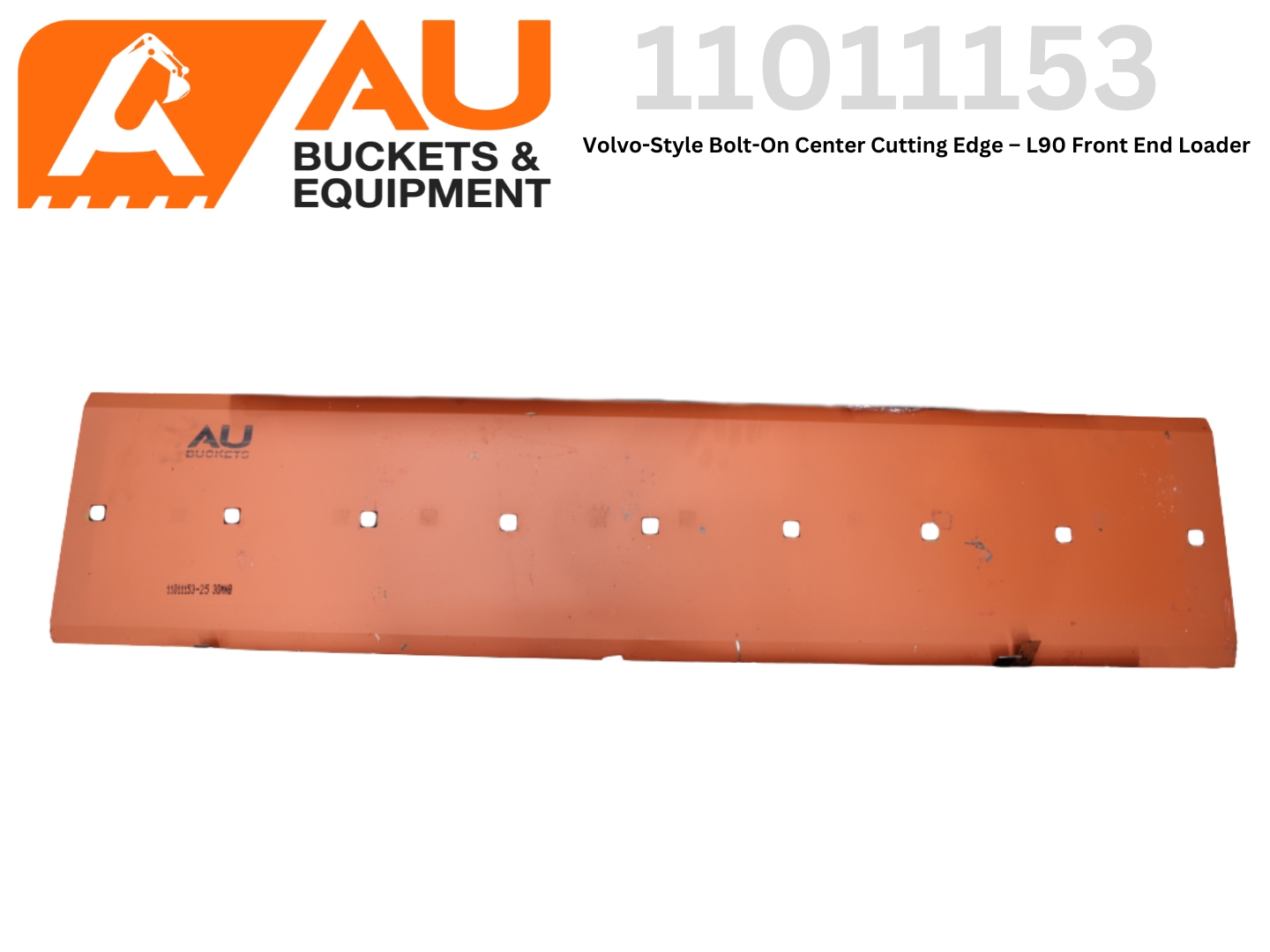

11011153 – Volvo-Style Bolt-On Center Cutting Edge – L90 Front End Loader
$610.00 Plus GST
AU GET supplied by AU Buckets & Equipment
This Volvo-style bolt-on center cutting edge is a double beveled, reversible bucket edge engineered for the L90 Volvo Front End Loader. Built for reliable wear resistance and clean cutting performance, this edge is ideal for general-purpose and high-impact earthmoving tasks.
Product Specifications:
-
Application: Center Cutting Edge for Volvo L90 Loader
-
Type: Double Beveled, Reversible
-
Thickness: 1 in (25.4 mm)
-
Width: 13.78 in (350 mm)
-
Length: 63 in (1600.2 mm)
-
Bolt Hole Spacing:
-
7.45 in (189.23 mm) center-to-center of the first two holes
-
1.71 in (43.43 mm) from edge to first hole center
-
-
Mounting Requirements:
-
(9) Plow Bolts – 3/4″ x 3″ (750 x 300 mm)
-
(9) Hex Nuts – 3/4″ (750 HEX)
-
Key Features:
-
Reversible design extends usable life
-
Heavy-duty thickness for improved strength and edge retention
-
Bolt-on system for fast installation and servicing
-
Tested to yield strength between 450–500
-
Fully compatible with Volvo L90 buckets and AU Buckets systems
AU GET supplied by AU Buckets & Equipment – engineered tough for Australian job sites.
3 in stock
- G.E.T and Accessories (CLICK HERE)
- Description (CLICK HERE)
- Specs/History/Downloads (CLICK HERE)
- G.E.T Product Details
AU GET supplied by AU Buckets & Equipment
This Volvo-style bolt-on center cutting edge is a double beveled, reversible bucket edge engineered for the L90 Volvo Front End Loader. Built for reliable wear resistance and clean cutting performance, this edge is ideal for general-purpose and high-impact earthmoving tasks.
Product Specifications:
- Application: Center Cutting Edge for Volvo L90 Loader
- Type: Double Beveled, Reversible
- Thickness: 1 in (25.4 mm)
- Width: 13.78 in (350 mm)
- Length: 63 in (1600.2 mm)
- Bolt Hole Spacing:
- 7.45 in (189.23 mm) center-to-center of the first two holes
- 1.71 in (43.43 mm) from edge to first hole center
- Mounting Requirements:
- (9) Plow Bolts – 3/4″ x 3″ (750 x 300 mm)
- (9) Hex Nuts – 3/4″ (750 HEX)
Key Features:
- Reversible design extends usable life
- Heavy-duty thickness for improved strength and edge retention
- Bolt-on system for fast installation and servicing
- Tested to yield strength between 450–500
- Fully compatible with Volvo L90 buckets and AU Buckets systems
AU GET supplied by AU Buckets & Equipment – engineered tough for Australian job sites.
