1U3202WTL – CAT style J200 Twin Tiger Tooth (1358208)
$20.00 Plus GST
AU GET supplied by AU Buckets & Equipment

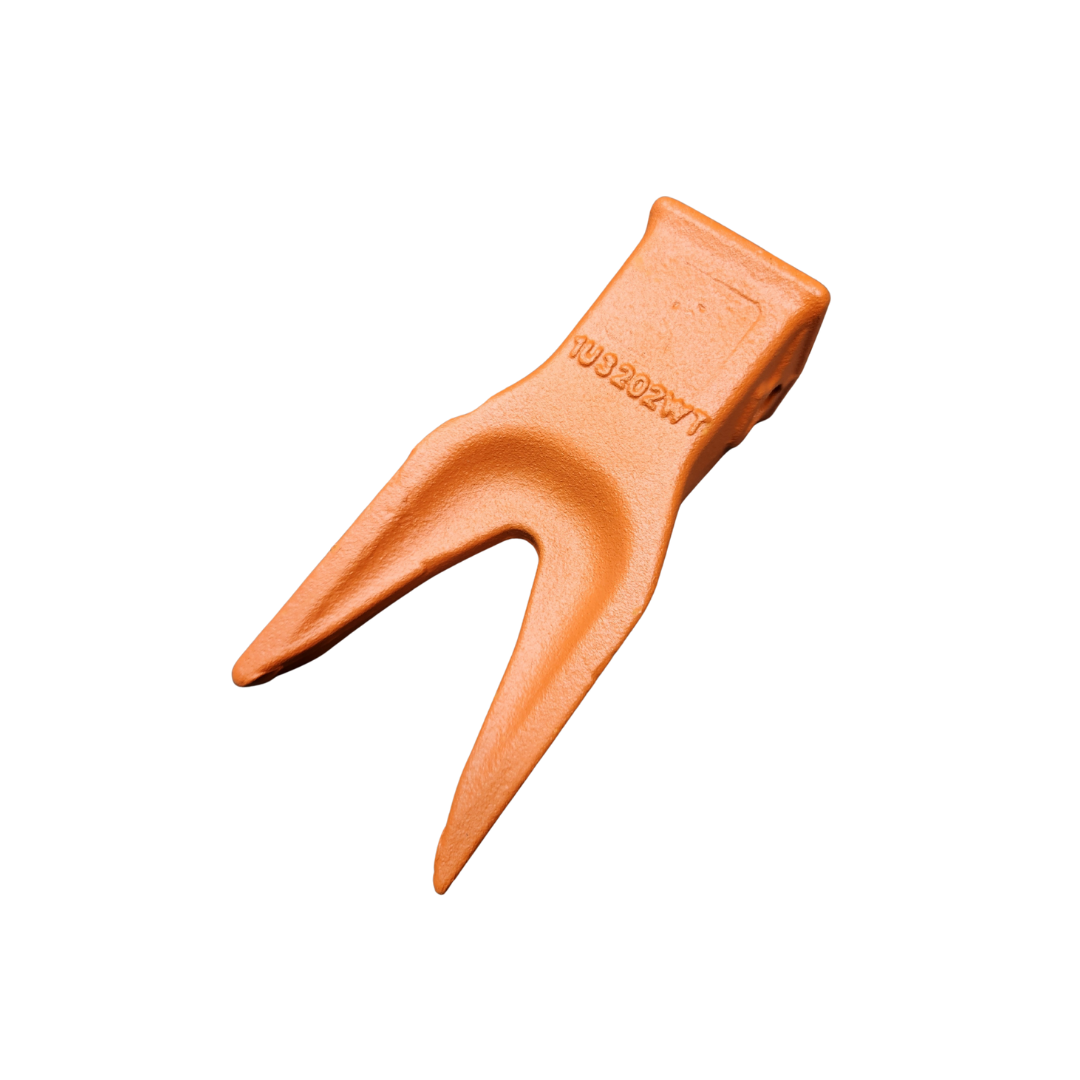

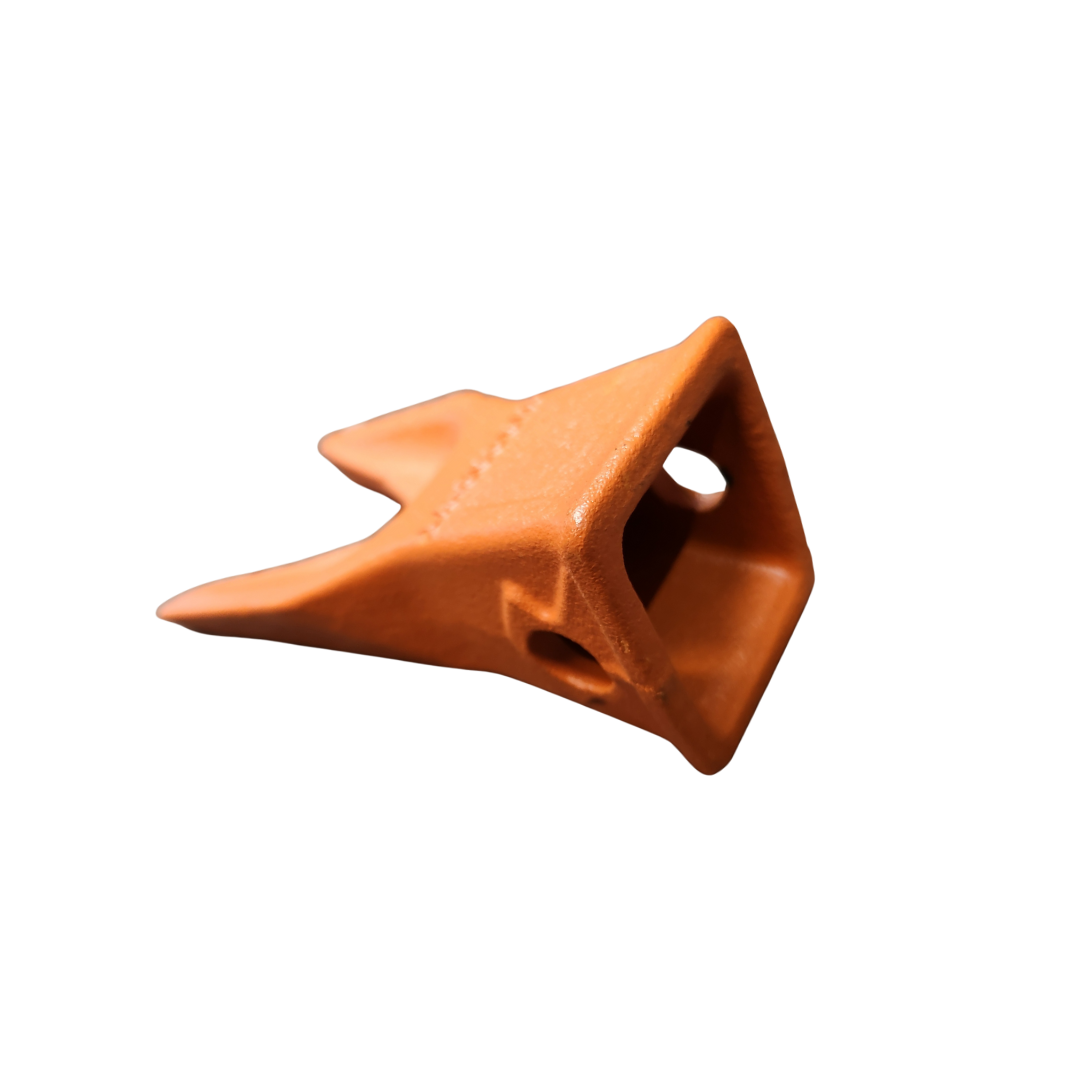

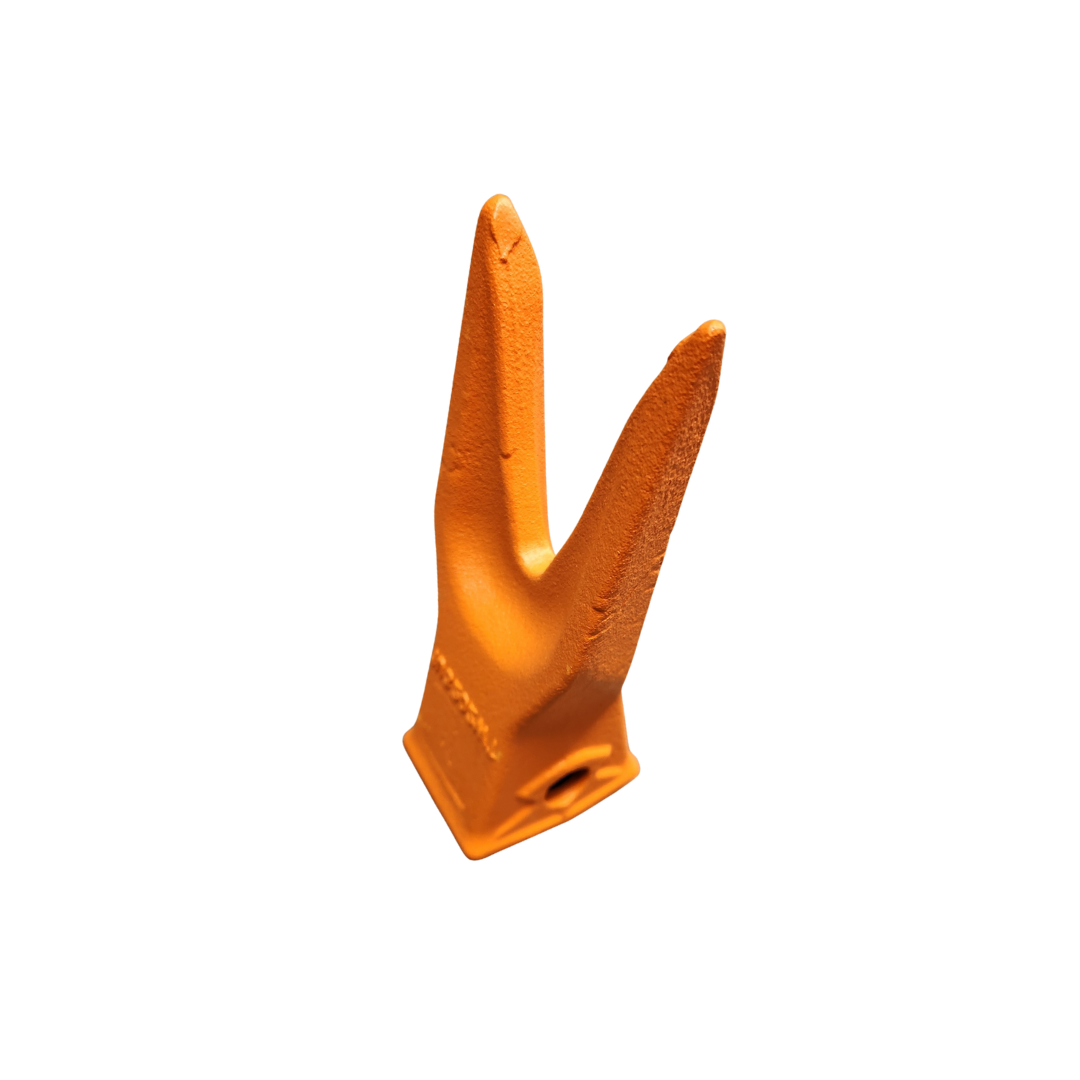

Part #1U3202WTL is a CAT style J200 Twin Tiger Tooth, designed for maximum penetration in compacted, rocky, or frozen ground conditions. Replacing OEM part 135-8208, this aggressive tooth features two sharp, reinforced points for concentrated breakout force—ideal for trenching, ripping, and hard ground excavation.
Product Specifications:
-
Part Number: 1U3202WTL
-
OEM Reference: 135-8208
-
Series: CAT J200
-
Tooth Style: Twin Tiger (WTL)
-
Application: Trenching, frost, rock, and compacted material
-
Material: High-strength, heat-treated alloy steel
-
Hardness: 48–52 HRC
-
Mounting System: Side-lock (uses 9W7112 pin & 8E6209 retainer)
Key Features:
-
Dual-point design delivers high penetration and breakout efficiency
-
Built for durability in extreme digging and high-resistance environments
-
Quick and secure installation with standard J200 pin and retainer
-
Fully compatible with OEM CAT and AU Buckets J200 adapters
AU GET supplied by AU Buckets & Equipment – for when tough ground calls for tougher teeth.
32 in stock
- Description (CLICK HERE)
- Specs/History/Downloads (CLICK HERE)
- G.E.T and Accessories (CLICK HERE)
- G.E.T Product Details
AU GET supplied by AU Buckets & Equipment
Part #1U3202WTL is a CAT style J200 Twin Tiger Tooth, designed for maximum penetration in compacted, rocky, or frozen ground conditions. Replacing OEM part 135-8208, this aggressive tooth features two sharp, reinforced points for concentrated breakout force—ideal for trenching, ripping, and hard ground excavation.
Product Specifications:
- Part Number: 1U3202WTL
- OEM Reference: 135-8208
- Series: CAT J200
- Tooth Style: Twin Tiger (WTL)
- Application: Trenching, frost, rock, and compacted material
- Material: High-strength, heat-treated alloy steel
- Hardness: 48–52 HRC
- Mounting System: Side-lock (uses 9W7112 pin & 8E6209 retainer)
Key Features:
- Dual-point design delivers high penetration and breakout efficiency
- Built for durability in extreme digging and high-resistance environments
- Quick and secure installation with standard J200 pin and retainer
- Fully compatible with OEM CAT and AU Buckets J200 adapters
AU GET supplied by AU Buckets & Equipment – for when tough ground calls for tougher teeth.
