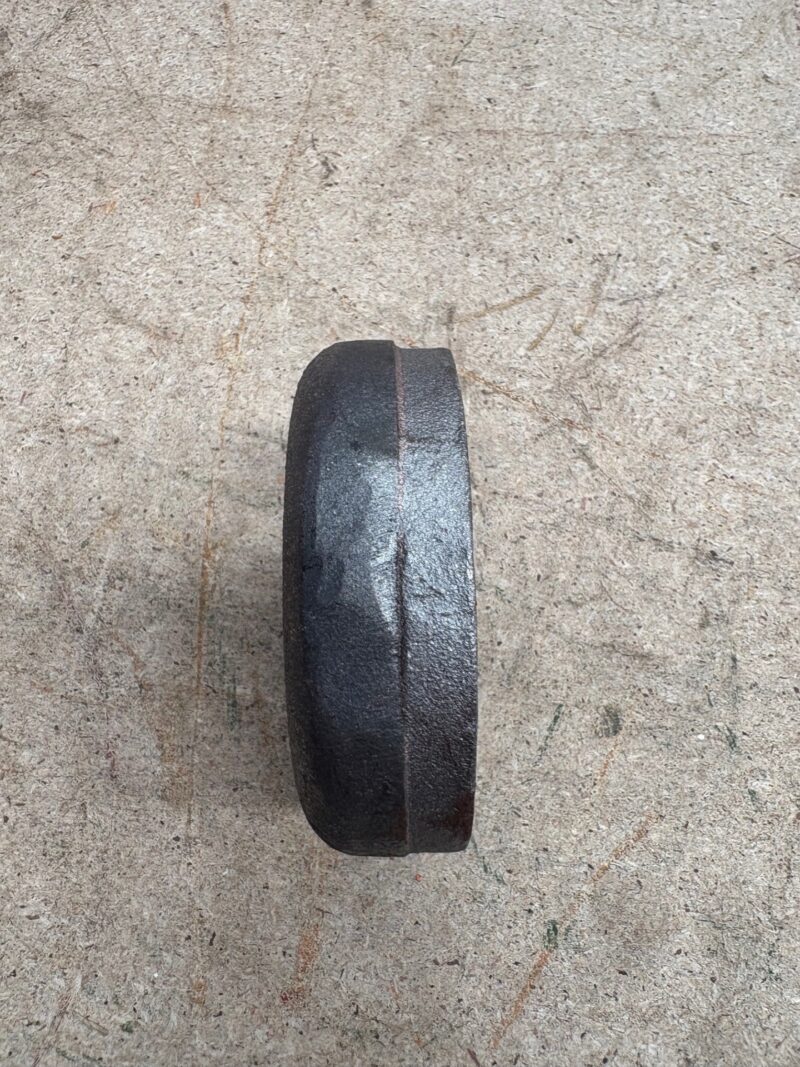

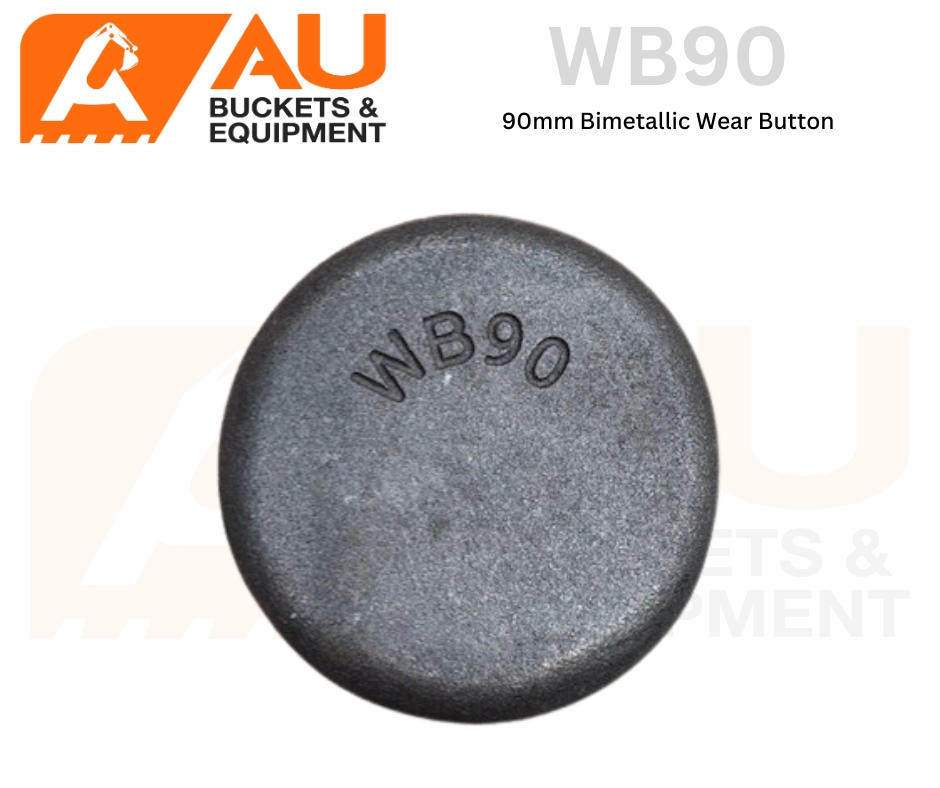

WB90 – 90mm Wear Button (700 Brinell, White Iron)
$35.00 Plus GST
AU GET Supplied by AU Buckets & Equipment
The WB90 is a heavy-duty 90mm (3 1/2″) diameter wear button made from ultra-tough 700 Brinell high chromium white iron, designed for high-abrasion environments. Backed with a weldable mild steel plate, this wear button provides an easy-to-install solution for extending the life of equipment exposed to constant impact and friction.
Specifications:
Diameter: 90mm (3 1/2″)
Total Height: 30.2mm (1.19″)
White Iron Thickness: 19.8mm (0.78″)
Mild Steel Backing Thickness: 10mm (0.39″)
Hardness: 700+ Brinell
Material: High chromium white iron with mild steel base
Applications:
Perfect for dozer blades, dragline buckets, chutes, hoppers, dump truck trays, and other high-wear zones across mining, quarrying, and civil earthworks.
100 in stock
- G.E.T and Accessories (CLICK HERE)
- Description (CLICK HERE)
- Specs/History/Downloads (CLICK HERE)
- G.E.T Product Details
AUAU GET Supplied by AU Buckets & Equipment
The WB90 is a heavy-duty 90mm (3 1/2″) diameter wear button made from ultra-tough 700 Brinell high chromium white iron, designed for high-abrasion environments. Backed with a weldable mild steel plate, this wear button provides an easy-to-install solution for extending the life of equipment exposed to constant impact and friction.
Specifications:
- Diameter: 90mm (3 1/2″)
- Total Height: 30.2mm (1.19″)
- White Iron Thickness: 19.8mm (0.78″)
- Mild Steel Backing Thickness: 10mm (0.39″)
- Hardness: 700+ Brinell
- Material: High chromium white iron with mild steel base
Applications:
Perfect for dozer blades, dragline buckets, chutes, hoppers, dump truck trays, and other high-wear zones across mining, quarrying, and civil earthworks.
