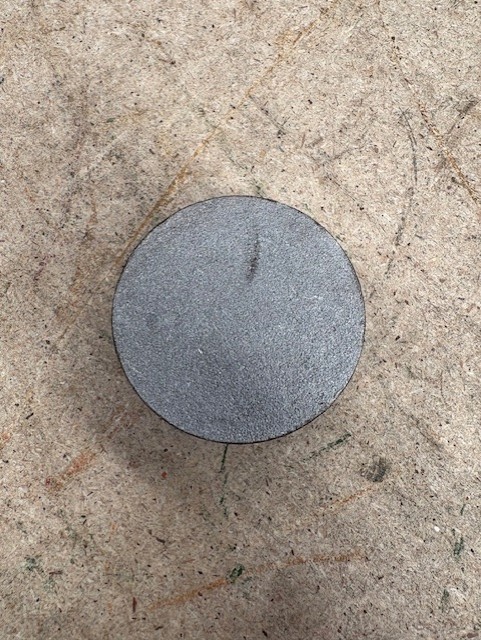

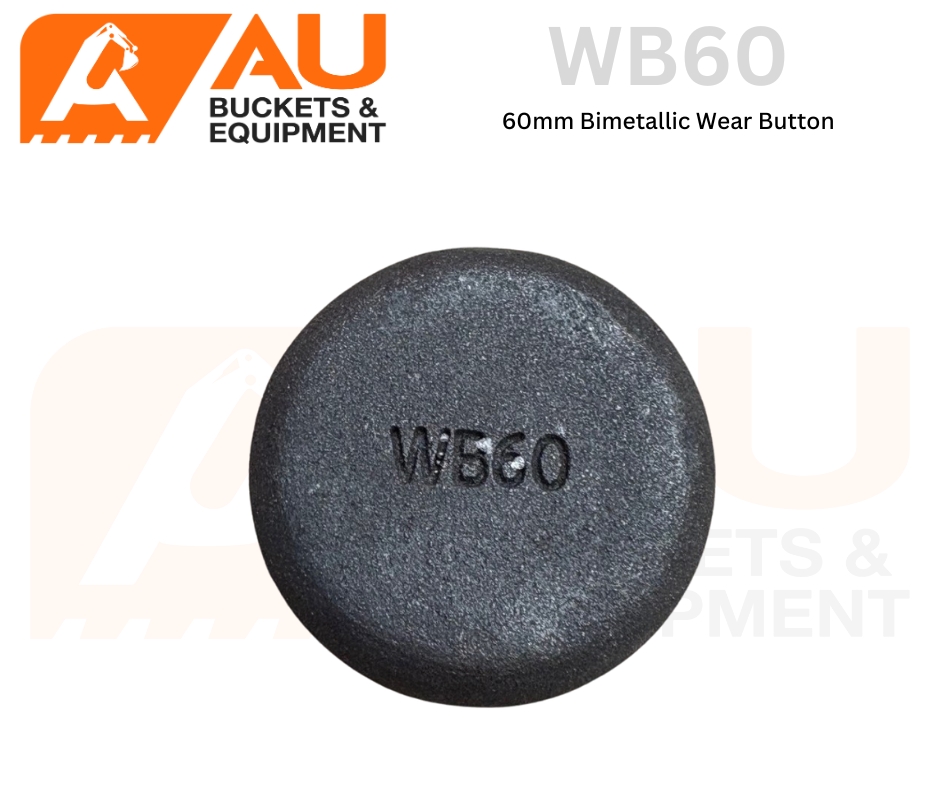

WB60 – 60mm Wear Button (700 Brinell, White Iron)
$16.00 Plus GST
AU GET Supplied by AU Buckets & Equipment
The WB60 wear button is built for extreme abrasion resistance in high-wear applications. With a 60mm (2 3/8″) diameter and a 700 Brinell hardness white iron surface, this button delivers long service life in the harshest conditions. A weldable mild steel backing plate ensures secure and easy installation to a wide range of earthmoving, mining, and agricultural equipment.
Specifications:
Diameter: 60mm (2 3/8″)
Total Height: 30.2mm (1.19″)
White Iron Thickness: 19.8mm (0.78″)
Mild Steel Backing Thickness: 10mm (0.39″)
Material: High chromium white iron bonded to a weldable backing plate
Hardness: 700+ Brinell (white iron face)
Applications:
Ideal for dozer blades, excavator buckets, dragline buckets, truck trays, chutes, and other high-impact, high-wear areas.
250 in stock
- Description (CLICK HERE)
- Specs/History/Downloads (CLICK HERE)
- G.E.T and Accessories (CLICK HERE)
- G.E.T Product Details
AU GET Supplied by AU Buckets & Equipment
The WB60 wear button is built for extreme abrasion resistance in high-wear applications. With a 60mm (2 3/8″) diameter and a 700 Brinell hardness white iron surface, this button delivers long service life in the harshest conditions. A weldable mild steel backing plate ensures secure and easy installation to a wide range of earthmoving, mining, and agricultural equipment.
Specifications:
- Diameter: 60mm (2 3/8″)
- Total Height: 30.2mm (1.19″)
- White Iron Thickness: 19.8mm (0.78″)
- Mild Steel Backing Thickness: 10mm (0.39″)
- Material: High chromium white iron bonded to a weldable backing plate
- Hardness: 700+ Brinell (white iron face)
Applications:
Ideal for dozer blades, excavator buckets, dragline buckets, truck trays, chutes, and other high-impact, high-wear areas.
