Stick Rake 8-10Ton 60mm pins(A) 160mm gaps

$5,000.00 Plus GST

$5,500.00 Inc GST

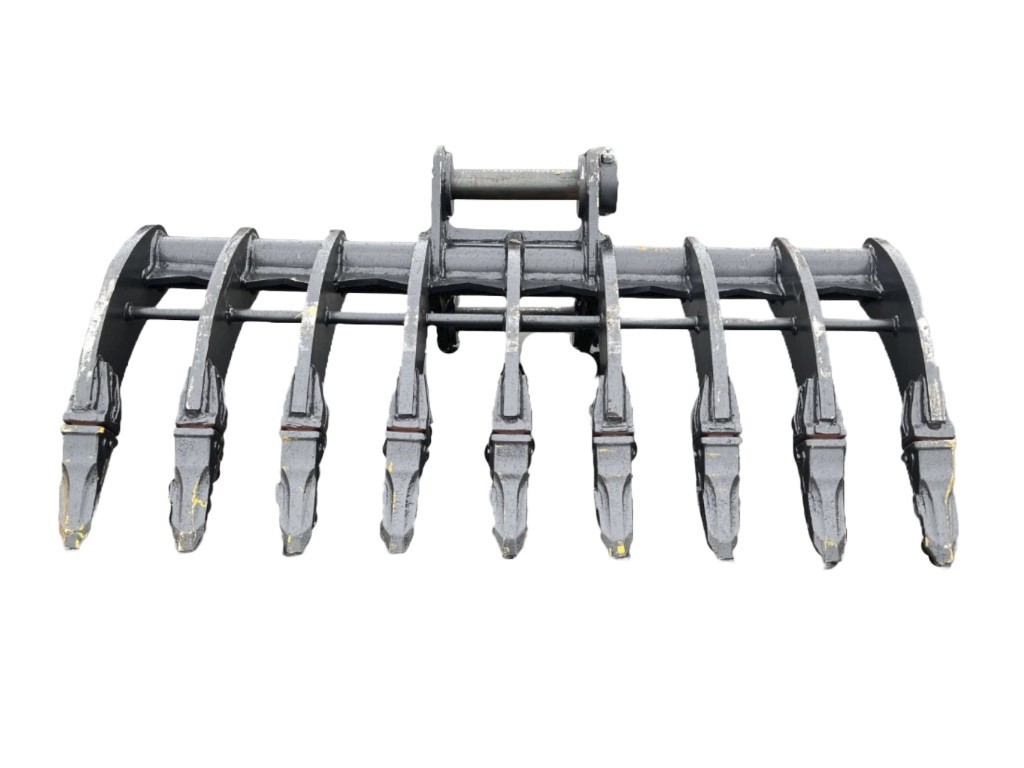

  • AU 1545mm wide stick rake with teeth,
  • 160mm wide spacings,
  • suit excavator with 60mm pins, 260mm ibe and 300mm cp to cp.
  • Tynes 25mm thick

1 in stock

Add to Cart

Stick Rake 8-10Ton 60mm pins(A) 160mm gaps $5,000.00 Plus GST
glance-table
Reference Number 60ASTICKRAKE

Stick Rake 8-10Ton 60mm pins(A) 160mm gaps
$5,000.00 Plus GST

Excavator pin size guide

1. Measure A Pin size

2. Measure B Center pin to Center Pin

3. Measure C in-between the ears

Excavator Skeleton Buckets

Excavator skeleton buckets are specialized attachments designed for excavators, primarily used in construction, mining, and landscaping industries. These buckets have a unique design featuring a series of ribs or tines with gaps in between, resembling a skeleton, hence the name. Here are some common uses of excavator skeleton buckets:

Sorting and Separating: Skeleton buckets are ideal for sorting and separating materials such as rocks, debris, and vegetation from soil or other materials. The gaps between the ribs allow smaller particles to fall through while retaining larger objects, making it easier to separate and organize materials on-site.

Land Clearing: They are useful for clearing land by efficiently removing brush, roots, and small trees while leaving the soil intact. The skeletal design prevents soil from being scooped up along with the vegetation, reducing the need for additional processing and saving time and effort.

Demolition: In demolition projects, skeleton buckets can be used to sift through rubble and debris, allowing operators to selectively remove materials such as concrete chunks, rebar, and other debris while leaving behind usable materials or preparing the site for further processing.

Environmental Remediation: Skeleton buckets are employed in environmental cleanup and remediation projects to remove contaminants from soil or sediment. They can sift through contaminated material, separating out pollutants while retaining the cleaned material, helping to restore the site to a safer and more environmentally friendly condition.

Skeleton Bucket Image 1
Skeleton Bucket Image 2

If you would like to know more about skeleton buckets, or if you can’t find what you need online, feel free to give me a call on 1300 059 612 and talk to Paul

Skeleton Bucket Image 3
Skeleton Bucket Image 4
Skeleton Bucket Image 5



au_bucket_table
Bucket Pin Size mm 60
Distance Between Centre's 300
Distance between Ears 260
Left Side Visual/Paint New
Right Side Visual/Paint New
Bucket Size Category 60A CP 300 IBE 260:60mm Pin, 300mm (CP to CP), 260mm (IBE)

Attachment Variants if Applicable

Transport Details

These are approximate sizes not inc Packaging

Sku's in stock

AU2260ASTICKRAKE-1
Transport Details

These are approximate sizes not inc Packaging

Organize your own freight, links below to help you.
FREIGHT COMPANY Questions
  • Yes we have a forklift to load your attachment.
  • Yes we can put the item on a pallet if required.
  • Yes this yard can take a B Double size trailer or a standard low loader trailer.
  • Yes this yard you can drive all the way through.
  • Pickup Address and times
  • 232 Welshpool road, Welshpool, WA 6106
  • 8:30 am to 4:00 pm Monday to Friday

You can get a quote from these freight companies. This is just a small sample of what is available.

Local Freight

Pep Transport Comet CTI Startrack Aramex Centurion TNT-FedEx Express Dananni Transport

Interstate Freight

Centurion Sykes Bishop's CTI GKR Allied TNT-FedEx Express Border Express



  • AU 1545mm wide stick rake with teeth,
  • 160mm wide spacings,
  • suit excavator with 60mm pins, 260mm ibe and 300mm cp to cp.
  • Tynes 25mm thick

  • J250 Rock Chisel Tooth xref no 1U3252 Price per each Pin and Retainer also available for purchase
    $35.00 Plus GST
    SKU: AU45TOOTHJ250

    Available: 35

    Add to Quote
  • Pin - 8E6258 and Retainer - 8E6259 for J250 bucket teeth, price is per each
    $6.00 Plus GST
    SKU: AUTOOTHJ250PR

    Available: 10

    Add to Quote
