Stick Rake 5Ton 45mm pins (A) 180mm gaps
$3,500.00 Plus GST

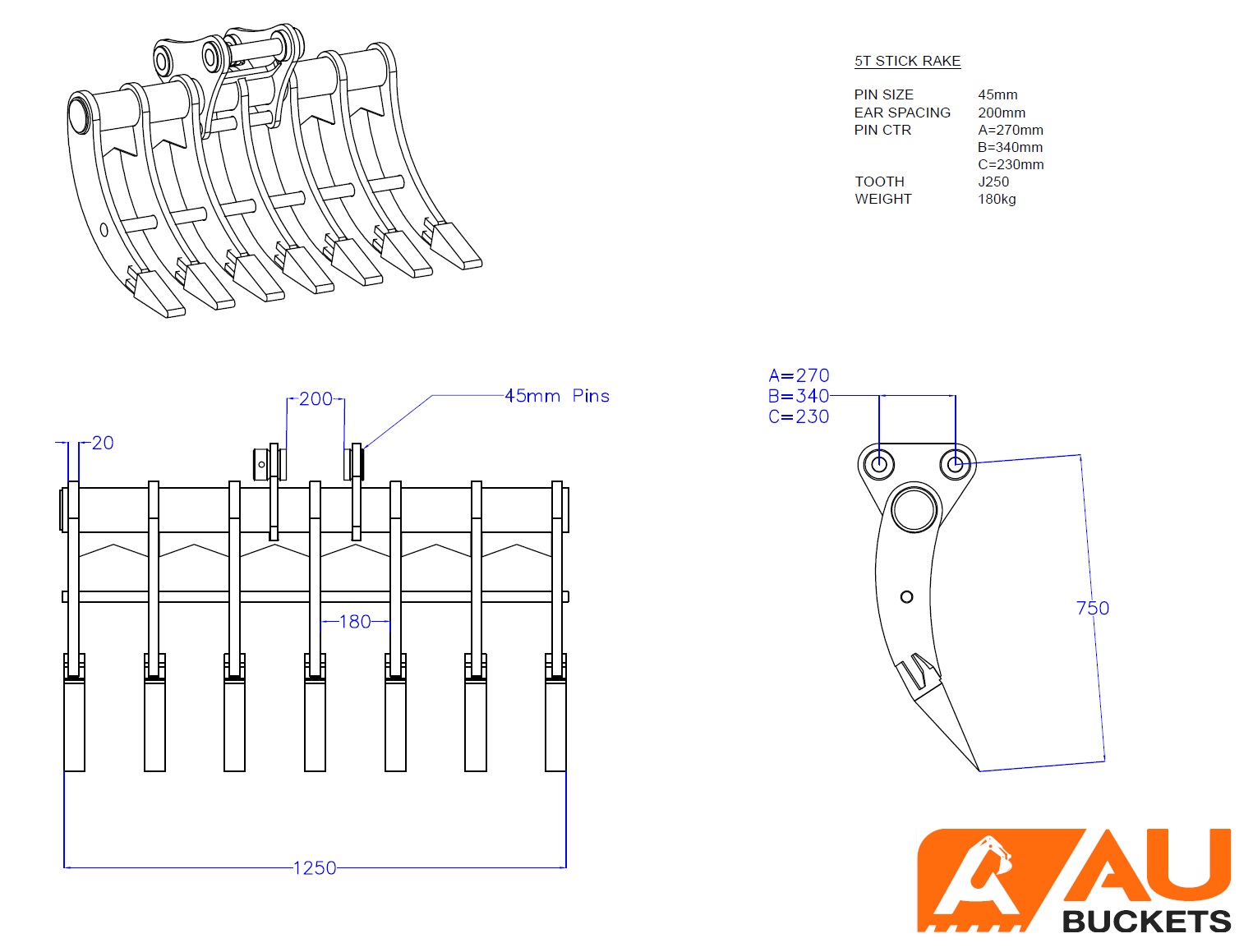

- AU 1250mm wide stick rake with teeth,
- 180mm wide spacings,
- suit excavator with 45mm pins, 200mm ibe and 270mm cp to cp.
- Tynes 20mm thick
Out of stock
Sku's in stock
- G.E.T and Accessories (CLICK HERE)
- Product Detail Description Rake/Skel (CLICK HERE)
- Bucket Details & Transport Details(CLICK HERE)
- Description (CLICK HERE)
- Specs/History/Downloads (CLICK HERE)
Excavator Skeleton Buckets
Excavator skeleton buckets are specialized attachments designed for excavators, primarily used in construction, mining, and landscaping industries. These buckets have a unique design featuring a series of ribs or tines with gaps in between, resembling a skeleton, hence the name. Here are some common uses of excavator skeleton buckets:
Sorting and Separating: Skeleton buckets are ideal for sorting and separating materials such as rocks, debris, and vegetation from soil or other materials. The gaps between the ribs allow smaller particles to fall through while retaining larger objects, making it easier to separate and organize materials on-site.
Land Clearing: They are useful for clearing land by efficiently removing brush, roots, and small trees while leaving the soil intact. The skeletal design prevents soil from being scooped up along with the vegetation, reducing the need for additional processing and saving time and effort.
Demolition: In demolition projects, skeleton buckets can be used to sift through rubble and debris, allowing operators to selectively remove materials such as concrete chunks, rebar, and other debris while leaving behind usable materials or preparing the site for further processing.
Environmental Remediation: Skeleton buckets are employed in environmental cleanup and remediation projects to remove contaminants from soil or sediment. They can sift through contaminated material, separating out pollutants while retaining the cleaned material, helping to restore the site to a safer and more environmentally friendly condition.


If you would like to know more about skeleton buckets, or if you can’t find what you need online, feel free to give me a call on 1300 059 612 and talk to Paul



Sku's in stock
These are approximate sizes not inc Packaging
Organize your own freight, links below to help you.- Yes we have a forklift to load your attachment.
- Yes we can put the item on a pallet if required.
- Yes this yard can take a B Double size trailer or a standard low loader trailer.
- Yes this yard you can drive all the way through.
- Pickup Address and times
- 232 Welshpool road, Welshpool, WA 6106
- 8:30 am to 4:00 pm Monday to Friday
You can get a quote from these freight companies. This is just a small sample of what is available.
Local Freight
Interstate Freight
- AU 1250mm wide stick rake with teeth,
- 180mm wide spacings,
- suit excavator with 45mm pins, 200mm ibe and 270mm cp to cp.
- Tynes 20mm thick
